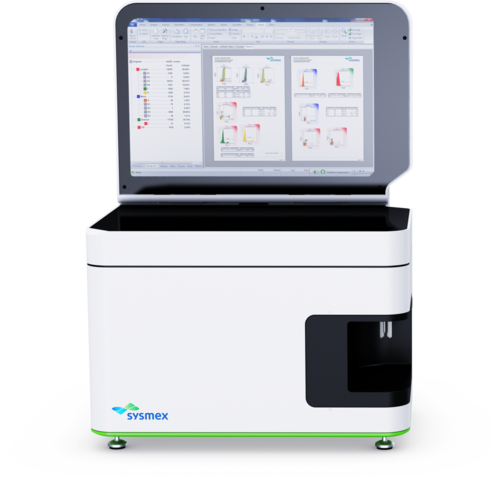

CyFlow Cube 8

The CyFlow Cube 8 is a compact flow cytometer for analysis of single cells and microscopic particles with a high grade of integration. The CyFlow Cube 8 gives the unique combination of a truly stand-alone system on a small footprint with a modular configuration concept with up to 6 colours.

The CyFlow Cube 8 is a compact flow cytometer for the analysis of single cells and microscopic particles with a high grade of integration. The CyFlow Cube 8 offers the unique combination of a truly stand-alone system of a small footprint with a modular configuration concept with up to 6 colours. The easy-to-use CyFlow software provides control of the instrument, data acquisition, analysis and storage. The possibility of customised instrument settings facilitates switching between different applications. CyFlow Cube 8 offers True Volumetric Absolute Counting (TVAC), which allows the display of particle concentrations for any subsets of cells without the need for reference beads, even if defined by a gate at a later time after the acquisition.

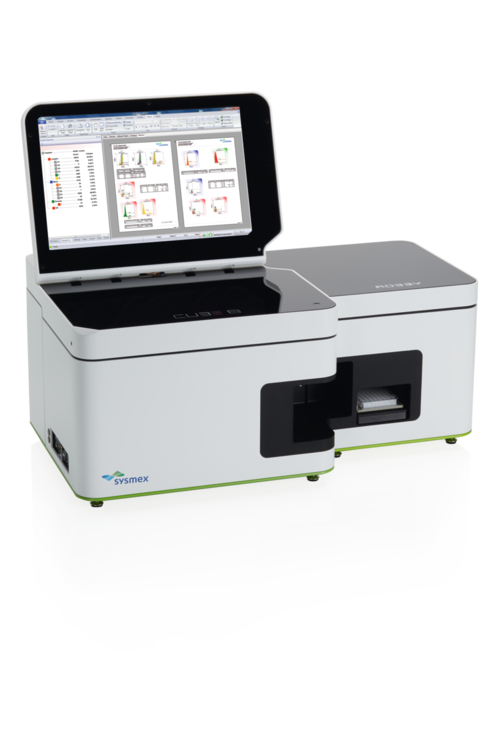

* Optional CyFlow Robby 8 Autoloading Station for well plates and tubes

* Optional CyFlow Sorter for closed, non-destructive cell and particle sorting with high purityon system with up to 6 colours. The easy-to-use CyView™ software provides instrument control, data acquisition and data storage. The possibility of customized instrument settings facilitates switching between different applications. Furthermore CyFlow® Cube 8 offers the True Volumetric Absolute Counting (TVAC) feature which allows displaying of particle concentrations for any subsets of cells without the need of reference beads, even if defined by a gate at a later time after the acquisition.

Technical Specifications
Light sources Up to four light sources (three lasers + high-power UV LED) Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm
Red laser: 25mW at 638nm, 40mW at 640nm
Violet laser: 100mW at 405nm
UV laser: 60mW at 375nm
Green laser: 30mW at 532nm, 100mW at 532nm
Yellow laser: 100mW at 561nm
Orange laser: 50mW at 594nm
High-power UV LED: 365nm
Optics Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL6
Exchangeable optical filters
Flow system Quartz flow cuvette for laminar sample transport and hydrodynamic focussing
True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement
Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
Software Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display
Easy set-up of experimental templates (configuration files)
Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
Dimensions Stand-alone instrument: W 500mm x H 370mm x D 470mm
With Autoloading Station: W 840mm

CyFlow Cube 8 Sorter

General facts Configurations with up to five optical parameters (up to three colours). Sterile sorting by closed fluidic system. Optional CyFlow Robby 8 Autoloading Station for well plates and tubes
Light sources Up to two simultaneous light sources (lasers)> Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm
Red laser: 25mW at 638nm, 40mW at 640nm
Violet laser: 100mW at 405nm
UV laser: 60mW at 375nm
Green laser: 30mW at 532nm, 100mW at 532nm
Yellow laser: 100mW at 561nm
Orange laser: 50mW at 594nm
Optics Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL3
Exchangeable optical filters
Flow system Quartz flow cuvette for laminar sample transport and sorting process
Completely closed and integrated fluidic system
True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement
Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
Software Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display
Easy set-up of experimental templates (configuration files)
Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
Dimensions  W 500mm x H 370mm x D 470mm (without sorting module)
